AT&T [VA-1]

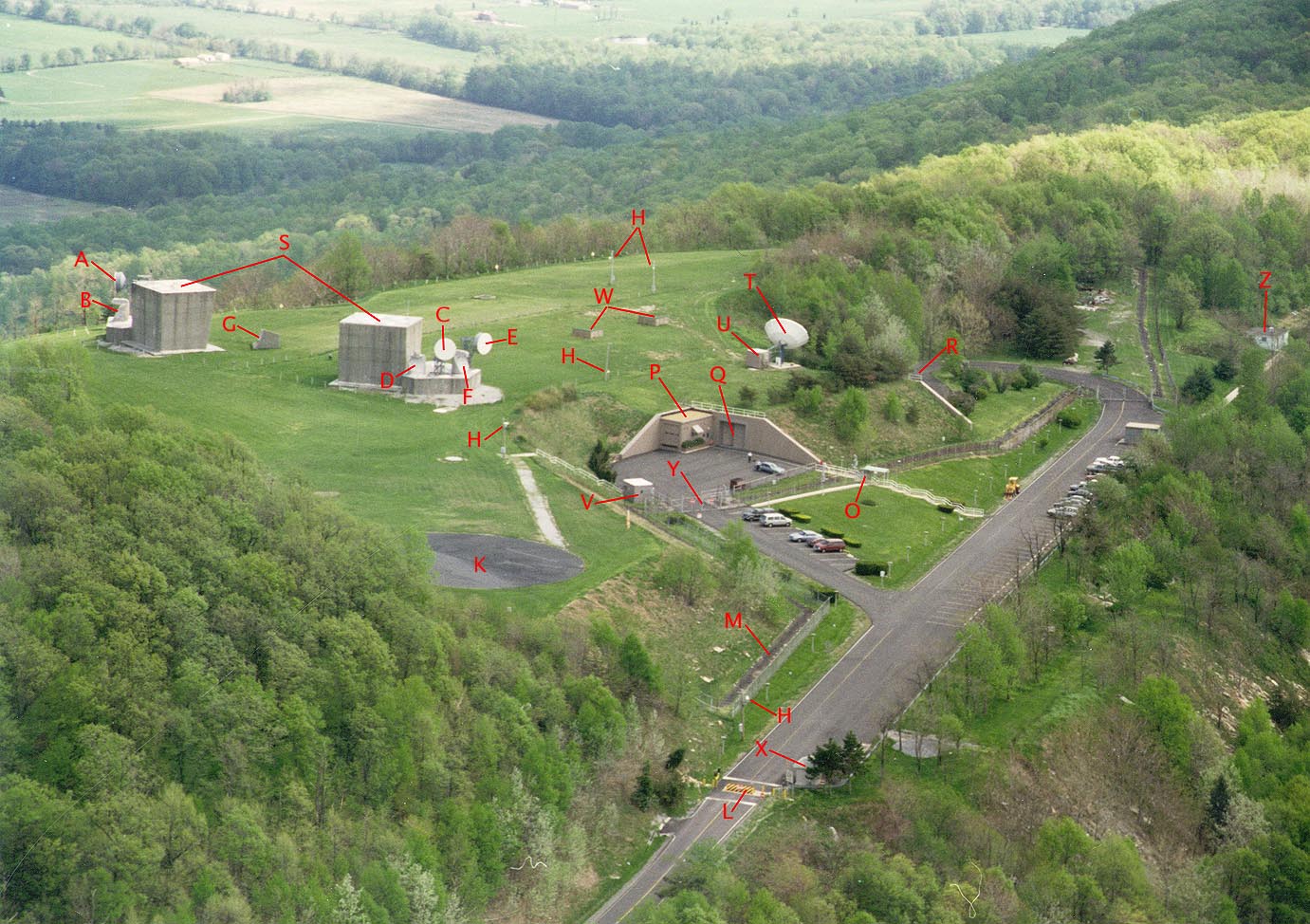

Key
- A - 4 GHz high-performance parabolic microwave antenna to AT&T [MD-1]
- B - 4 GHz hardened parabolic microwave antenna to [MD-1] (inactive)
- C - 4 GHz high-performance parabolic microwave antenna (inactive?) to AT&T Hagerstown No. 2
- D - 4 GHz hardened parabolic microwave antenna (inactive) to Hagerstown No. 2 with gamma-ray detector on feed arm; see close-up of similar antenna and detector at [MD-1]
- E - 4 GHz high-performance parabolic to Omps (Whitacre, VA)
- F - 4 GHz hardened parabolic (inactive) to Omps
- G - feed structure for east (left-hand) troposcatter reflector
- H - CCTV cameras on poles
- K - helipad
- L - pop-up vehicle barrier
- M - Proximity-sensor fence (ADT "Telapproach" perimeter protection system) in cleared strip; see close-up of sensor fence at Buckingham, VA
- O - turnstile for personnel entry-egress; see close-up of turnstile at Buckingham, VA
- P - security office
- Q - front (entrance) door to drive-through entrance/decon structure
- R - rear (exit) door [not visible] to drive-through entrance/decontamination structure
- S - troposcatter reflector structures
- T - satellite uplink dish (7.2 M diameter, Ku-band)
- U - shelter for satcom equipment (?)
- V - unknown
- W - unknown
- X - shelter for vehicle-barrier operating equipment
- Y - chain-link gate to inner parking area
- Z - wastewater treatment plant
